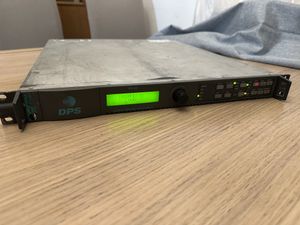

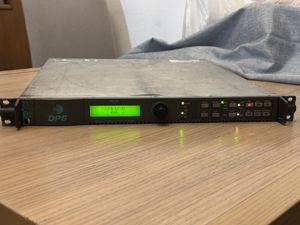

This is the first professional TBC that I acquired in my collection. At first glance, it seemed very capable, the device worked properly and was highly flexible for image adjustments (brightness, black level, color intensity, etc.). However, when processing heavily unstable analog signals like poor quality VHS tapes, it quickly became apparent that it wasn't designed for consumer formats with serious synchronization problems.

Initially, I didn't use it much due to its limitations with VHS format transfers. Only later did I realize the true value of this device when I decided to test it again and read through the documentation thoroughly.

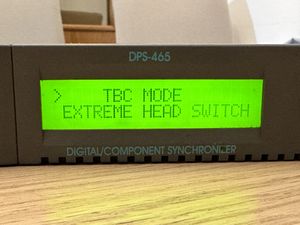

The device has three main operating modes: TBC, frame synchronizer, and video generator:

• As a TBC, it does a good job only if the unstable signal is in decent condition. If not, the video will start to shake and jitter that the result is practically unusable.
• As a frame synchronizer, it works excellently. This mode is perfect for converting between various video standards thanks to the wide selection of video inputs and outputs available on the device. Examples: S-Video to SDI, SDI to composite, SDI to component, etc.
• As a video generator, it's fairly standard regarding the signals it can generate, but due to the wide variety of video outputs, it can connect to almost any device, which really sets it apart from other video generators. It cannot generate complex test patterns like Philips Circle Pattern, Telefunken FuBK, etc. The most complex pattern it has is Matrix 1. I plan to make a video showcasing all of the signals it can generate

Overall, my impression of this device has changed over time. Initially, its main function I originaly bought it for(video signal stabilization), didn't prove to be the most effective, which led to limited use early on. Through time and reading documentation, I realized there is value in this device, just not in the area I was originally seeking.
